Status Bar
The status bar appears along the lower right edge of the AutoCAD window, below
the command line. See Figure 1-16. The status bar includes controls for a variety of
drawing aids and commands. Most of the controls are status toggle buttons. The status
bar is often the quickest and most effective way to manage certain drawing settings.
By default, the status bar provides notifi cations for certain AutoCAD processes, such
as plotting.
NOTE NOTE
Use the
Customization
fl yout to add tools to or hide tools from the status bar.
AutoCAD forms the status bar into two rows if not all of the status bar controls fi t
into a single row.
command line:
Area where you can
type commands
(command names)
and type or select
command options.
status toggle
buttons: Buttons
that toggle drawing
aids and commands
on and off.

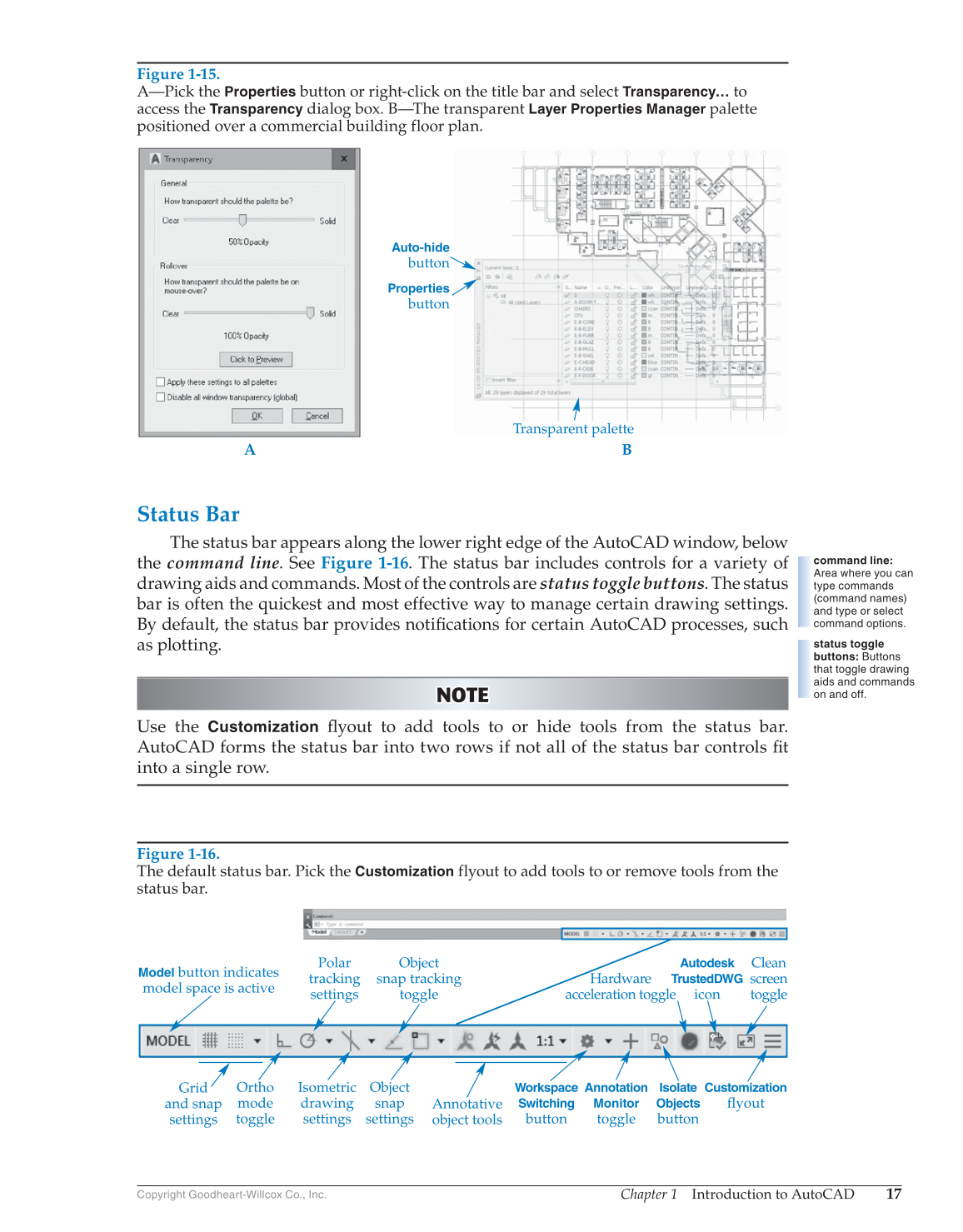

Figure 1-15.
A—Pick the
Properties
button or right-click on the title bar and select
Transparency…
to
access the
Transparency
dialog box. B—The transparent
Layer Properties Manager
palette
positioned over a commercial building floor plan.
Properties
button
Auto-hide
button
Transparent palette
A B
Figure 1-16.
The default status bar. Pick the
Customization
flyout to add tools to or remove tools from the
status bar.
Model
button indicates
model space is active
Workspace
Switching
button
Customization
flyout
Grid
and snap
settings
Ortho
mode
toggle
Polar
tracking
settings
Isometric
drawing
settings
Object
snap tracking
toggle
Object
snap
settings
Annotative
object tools
Annotation
Monitor
toggle
Isolate
Objects
button
Hardware
acceleration toggle
Autodesk
TrustedDWG
icon
Clean
screen
toggle
