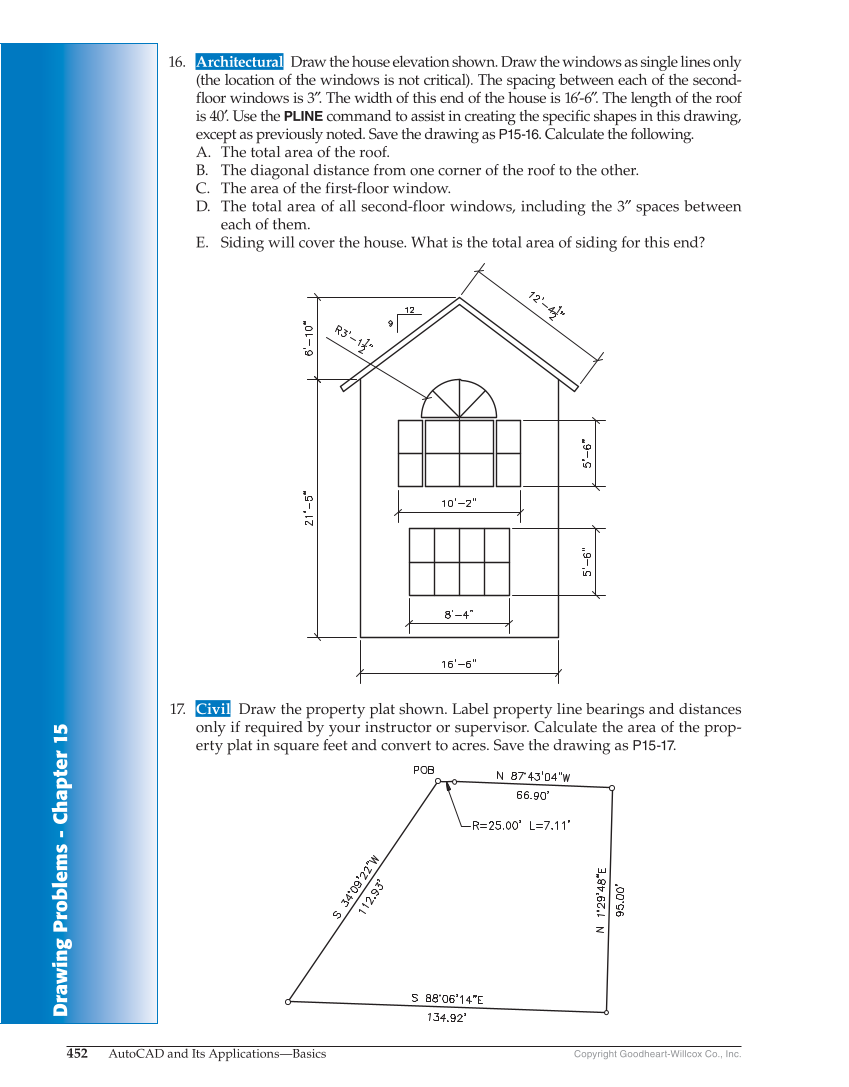

Drawing Problems - Chapter 1 Drawing Problems - Chapter 1 5 452 AutoCAD and Its Applications—Basics Copyright Goodheart-Willcox Co., Inc. 16. Architectural Draw the house elevation shown. Draw the windows as single lines only (the location of the windows is not critical). The spacing between each of the second- floor windows is 3″. The width of this end of the house is 16′-6″. The length of the roof is 40′ . Use the PLINE command to assist in creating the specific shapes in this drawing, except as previously noted. Save the drawing as P15-16. Calculate the following. A. The total area of the roof. B. The diagonal distance from one corner of the roof to the other. C. The area of the first-floor window. D. The total area of all second-floor windows, including the 3″ spaces between each of them. E. Siding will cover the house. What is the total area of siding for this end? 17. Civil Draw the property plat shown. Label property line bearings and distances only if required by your instructor or supervisor. Calculate the area of the prop- erty plat in square feet and convert to acres. Save the drawing as P15-17.
