Chapter 8 Creating and Working with Solid Model Features
189
A
B
Center
axis

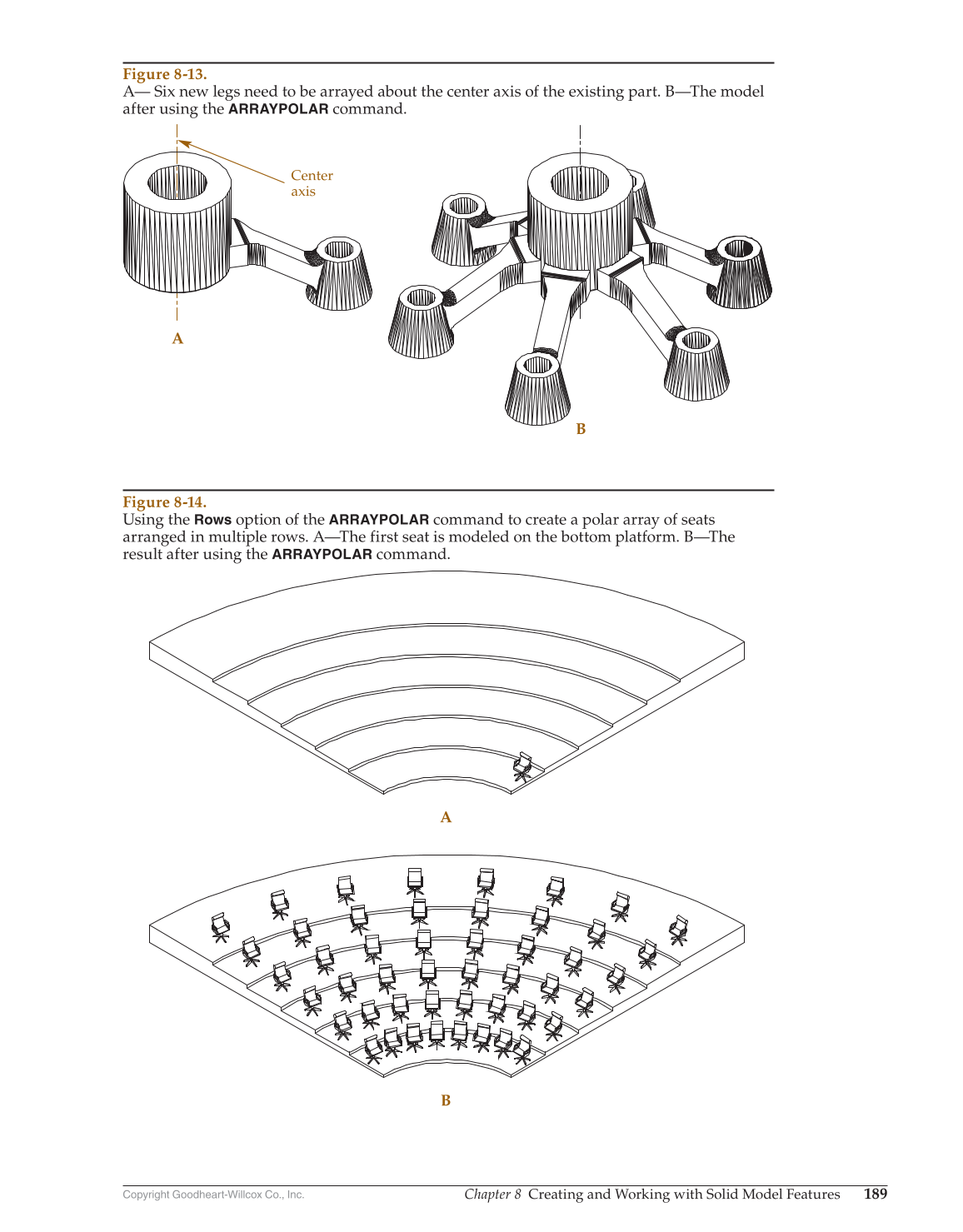

Figure 8-13.
A— Six new legs need to be arrayed about the center axis of the existing part. B—The model
after using the
ARRAYPOLAR
command.
A
B
Figure 8-14.
Using the
Rows
option of the
ARRAYPOLAR
command to create a polar array of seats
arranged in multiple rows. A—The first seat is modeled on the bottom platform. B—The
result after using the
ARRAYPOLAR
command.
