Drawing
Problems
-
Chapter
11
326
AutoCAD and Its Applications—Basics
Copyright Goodheart-Willcox Co., Inc.

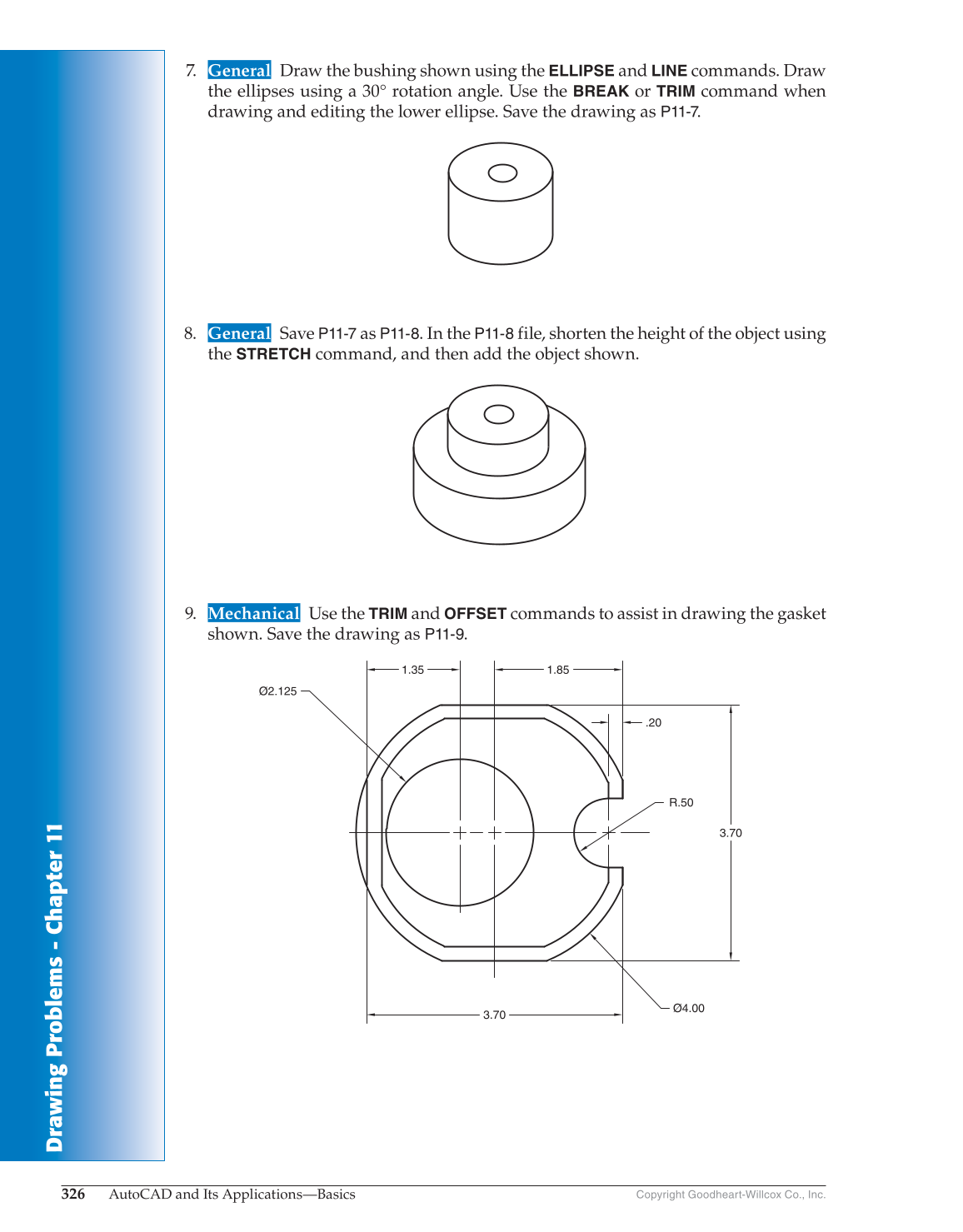

7. General Draw the bushing shown using the
ELLIPSE
and
LINE
commands. Draw
the ellipses using a 30° rotation angle. Use the
BREAK
or
TRIM
command when
drawing and editing the lower ellipse. Save the drawing as P11-7.
8. General Save
P11-7
as P11-8. In the
P11-8
file, shorten the height of the object using
the
STRETCH
command, and then add the object shown.
9. Mechanical Use the
TRIM
and
OFFSET
commands to assist in drawing the gasket
shown. Save the drawing as P11-9.
1.35 1.85
.20
3.70
R.50
Ø4.00
Ø2.125
3.70
