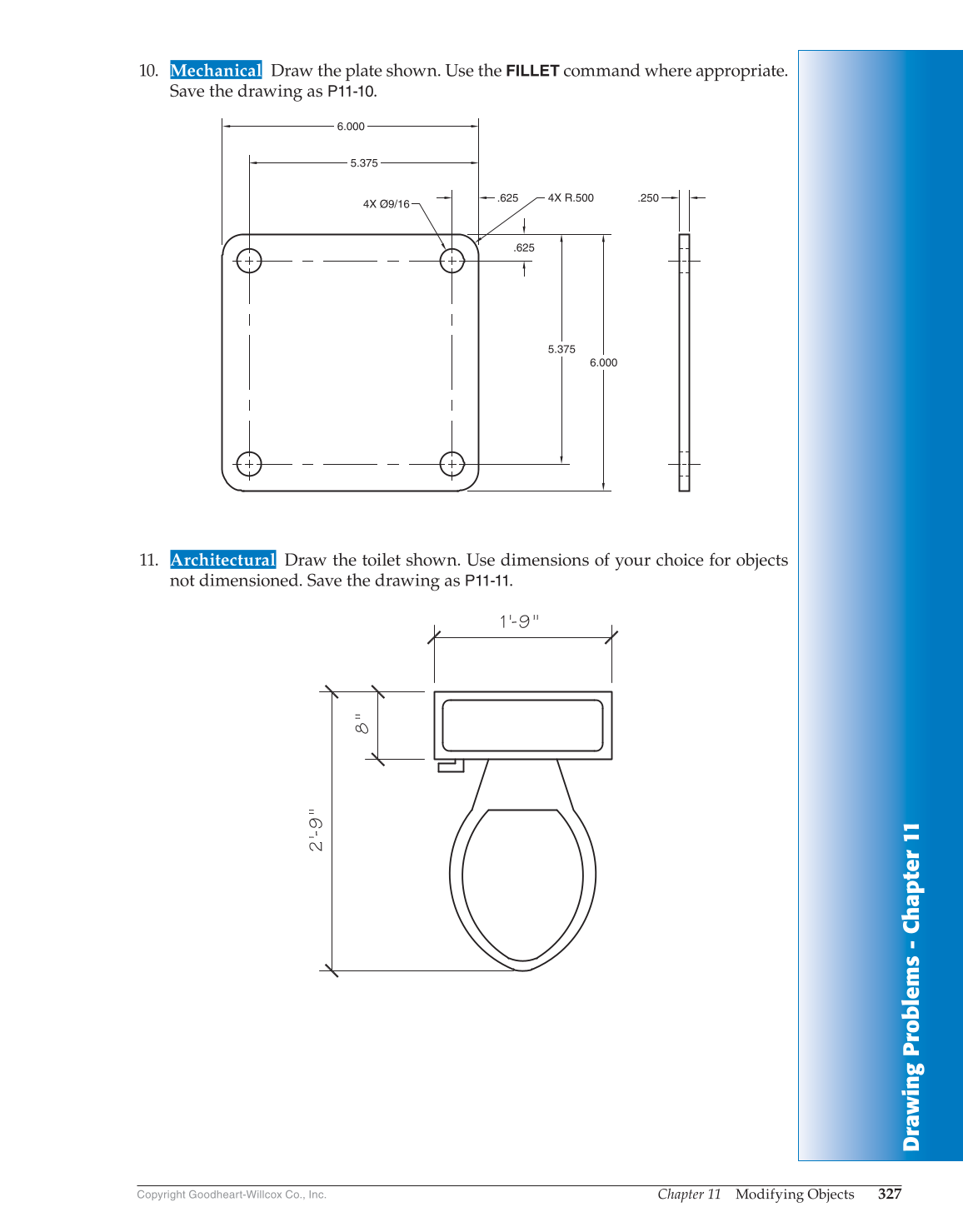

10. Mechanical Draw the plate shown. Use the
FILLET
command where appropriate.
Save the drawing as P11-10.
.625
5.375
6.000
4X Ø9/16
.625
5.375
6.000
.250 4X R.500
11. Architectural Draw the toilet shown. Use dimensions of your choice for objects
not dimensioned. Save the drawing as P11-11.
