Drawing
Problems
-
Chapter
11
328
AutoCAD and Its Applications—Basics
Copyright Goodheart-Willcox Co., Inc.
▼ Advanced

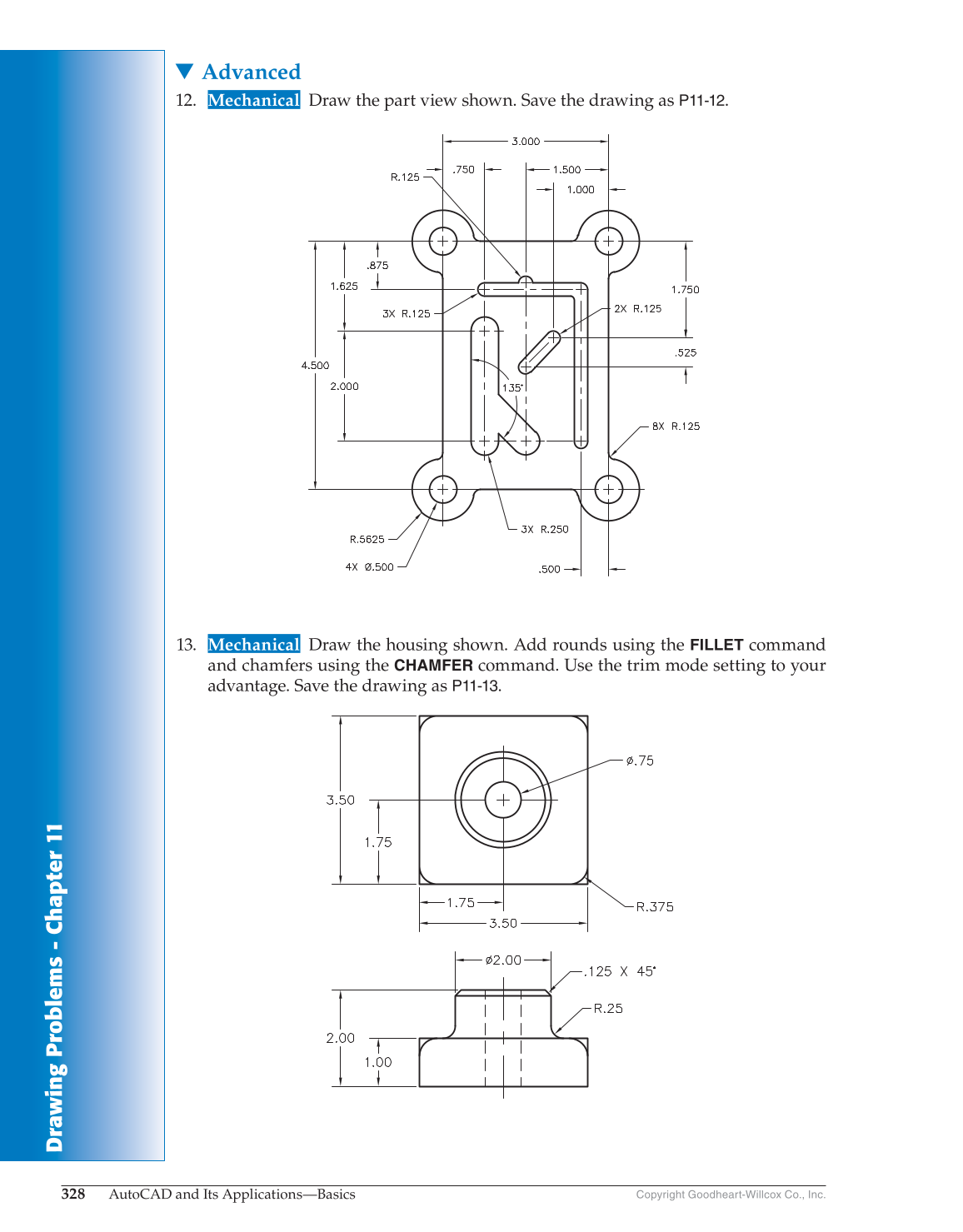

12. Mechanical Draw the part view shown. Save the drawing as P11-12.
13. Mechanical Draw the housing shown. Add rounds using the
FILLET
command
and chamfers using the
CHAMFER
command. Use the trim mode setting to your
advantage. Save the drawing as P11-13.
