Drawing
Problems
-
Chapter
11
Chapter 11 Modifying Objects
329
Copyright Goodheart-Willcox Co., Inc.

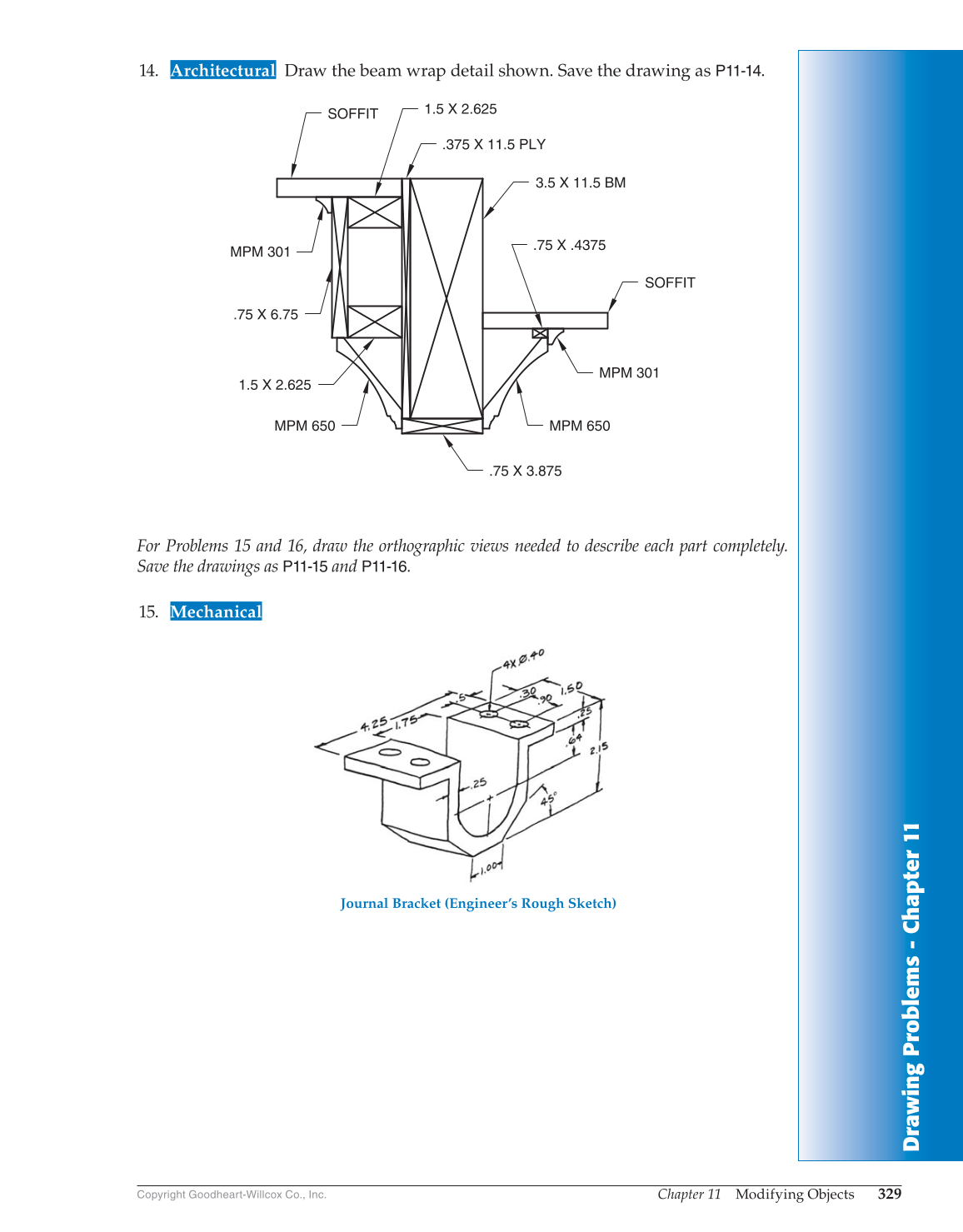

14. Architectural Draw the beam wrap detail shown. Save the drawing as P11-14.
3.5 X 11.5 BM
.75 X .4375
MPM 301
SOFFIT
MPM 650
.75 X 3.875
.375 X 11.5 PLY
MPM 650
SOFFIT
.75 X 6.75
MPM 301
1.5 X 2.625
1.5 X 2.625
For Problems 15 and 16, draw the orthographic views needed to describe each part completely.
Save the drawings as
P11-15
and P11-16.
15. Mechanical
Journal Bracket (Engineer’s Rough Sketch)
