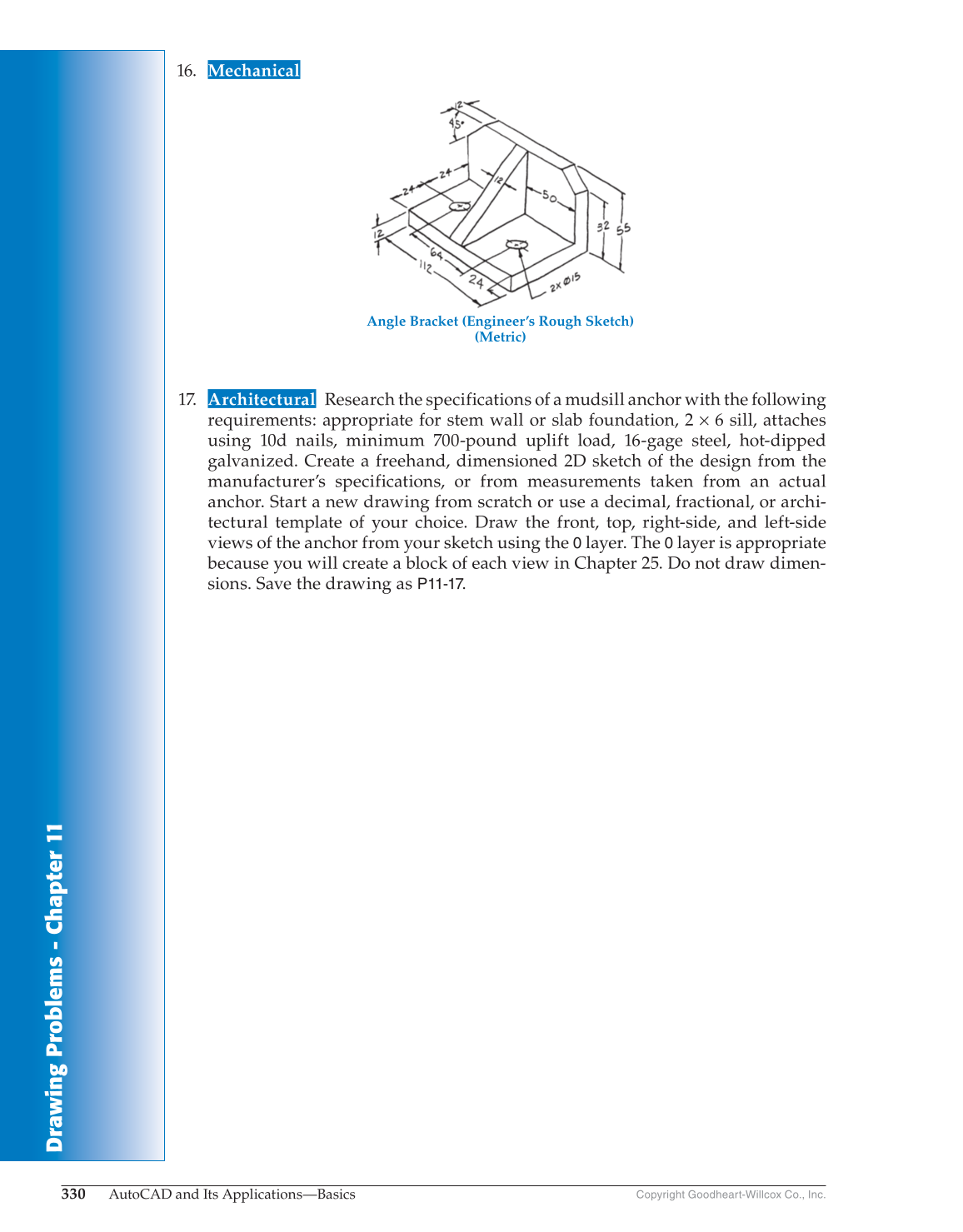

16. Mechanical
Angle Bracket (Engineer’s Rough Sketch)
(Metric)
17. Architectural Research the specifications of a mudsill anchor with the following
requirements: appropriate for stem wall or slab foundation, 2 × 6 sill, attaches
using 10d nails, minimum 700-pound uplift load, 16-gage steel, hot-dipped
galvanized. Create a freehand, dimensioned 2D sketch of the design from the
manufacturer’s specifications, or from measurements taken from an actual
anchor. Start a new drawing from scratch or use a decimal, fractional, or archi-
tectural template of your choice. Draw the front, top, right-side, and left-side
views of the anchor from your sketch using the
0
layer. The
0
layer is appropriate
because you will create a block of each view in Chapter 25. Do not draw dimen-
sions. Save the drawing as P11-17.
