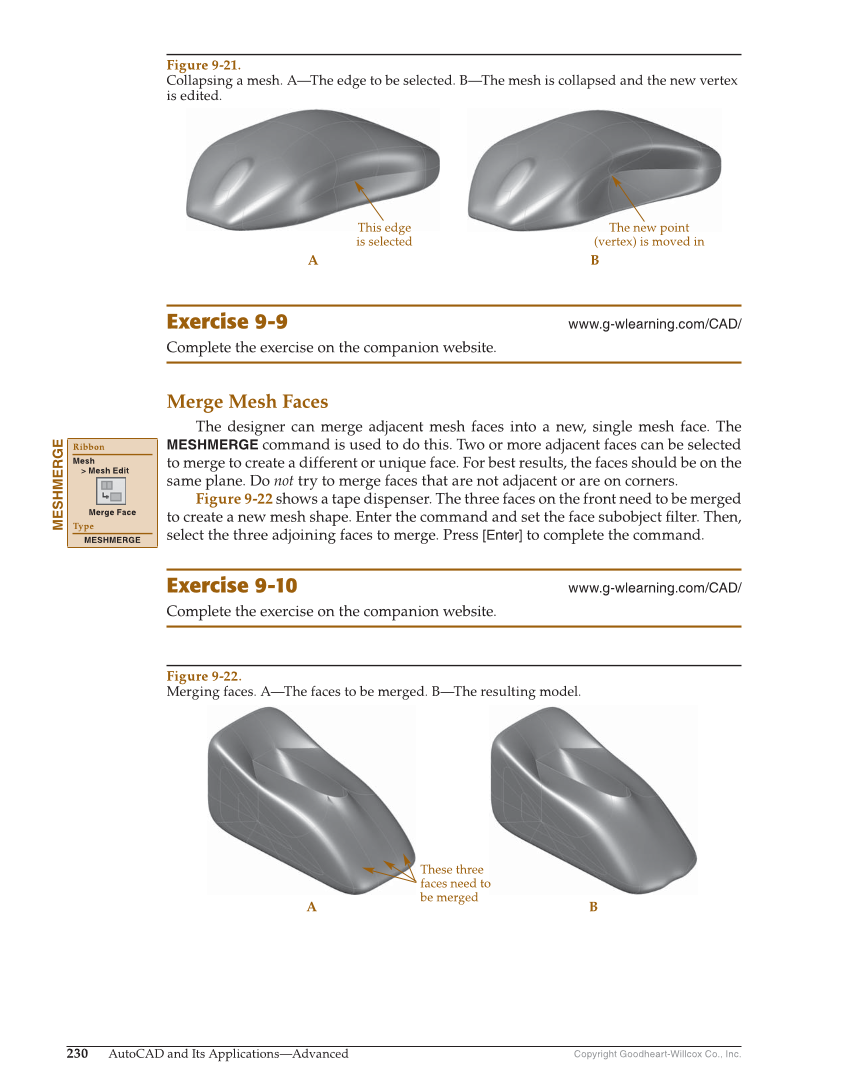

Copyright Goodheart-Willcox Co., Inc. 230 AutoCAD and Its Applications—Advanced Exercise 9-9 www.g-wlearning.com/CAD/ Complete the exercise on the companion website. Merge Mesh Faces The designer can merge adjacent mesh faces into a new, single mesh face. The MESHMERGE command is used to do this. Two or more adjacent faces can be selected to merge to create a different or unique face. For best results, the faces should be on the same plane. Do not try to merge faces that are not adjacent or are on corners. Figure 9-22 shows a tape dispenser. The three faces on the front need to be merged to create a new mesh shape. Enter the command and set the face subobject fi lter. Then, select the three adjoining faces to merge. Press [Enter] to complete the command. Exercise 9-10 www.g-wlearning.com/CAD/ Complete the exercise on the companion website. MESHMERGE Ribbon Mesh Mesh Edit Merge Face Type MESHMERGE These three faces need to be merged A B Figure 9-22. Merging faces. A—The faces to be merged. B—The resulting model. The new point (vertex) is moved in A This edge is selected B Figure 9-21. Collapsing a mesh. A—The edge to be selected. B—The mesh is collapsed and the new vertex is edited.
