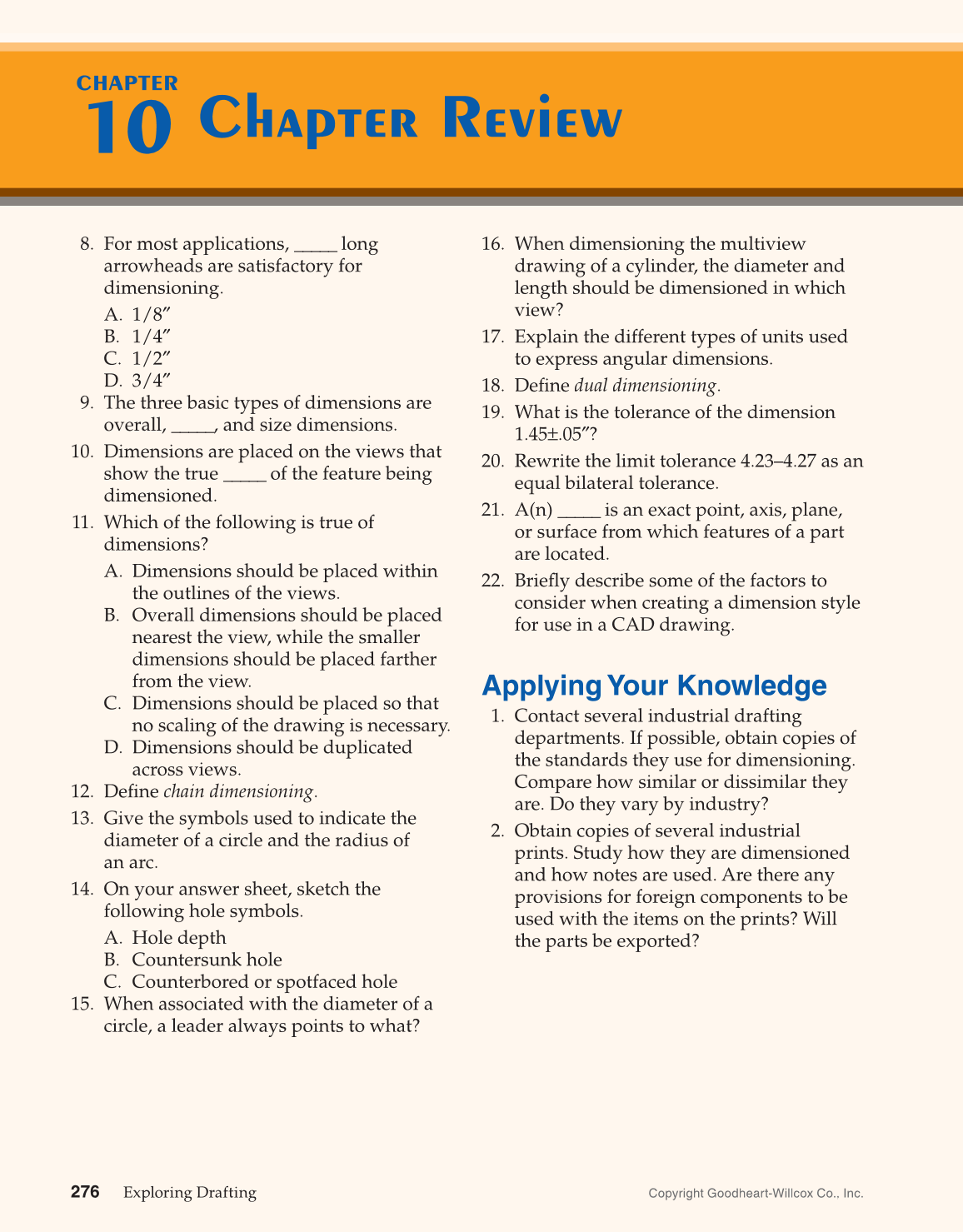

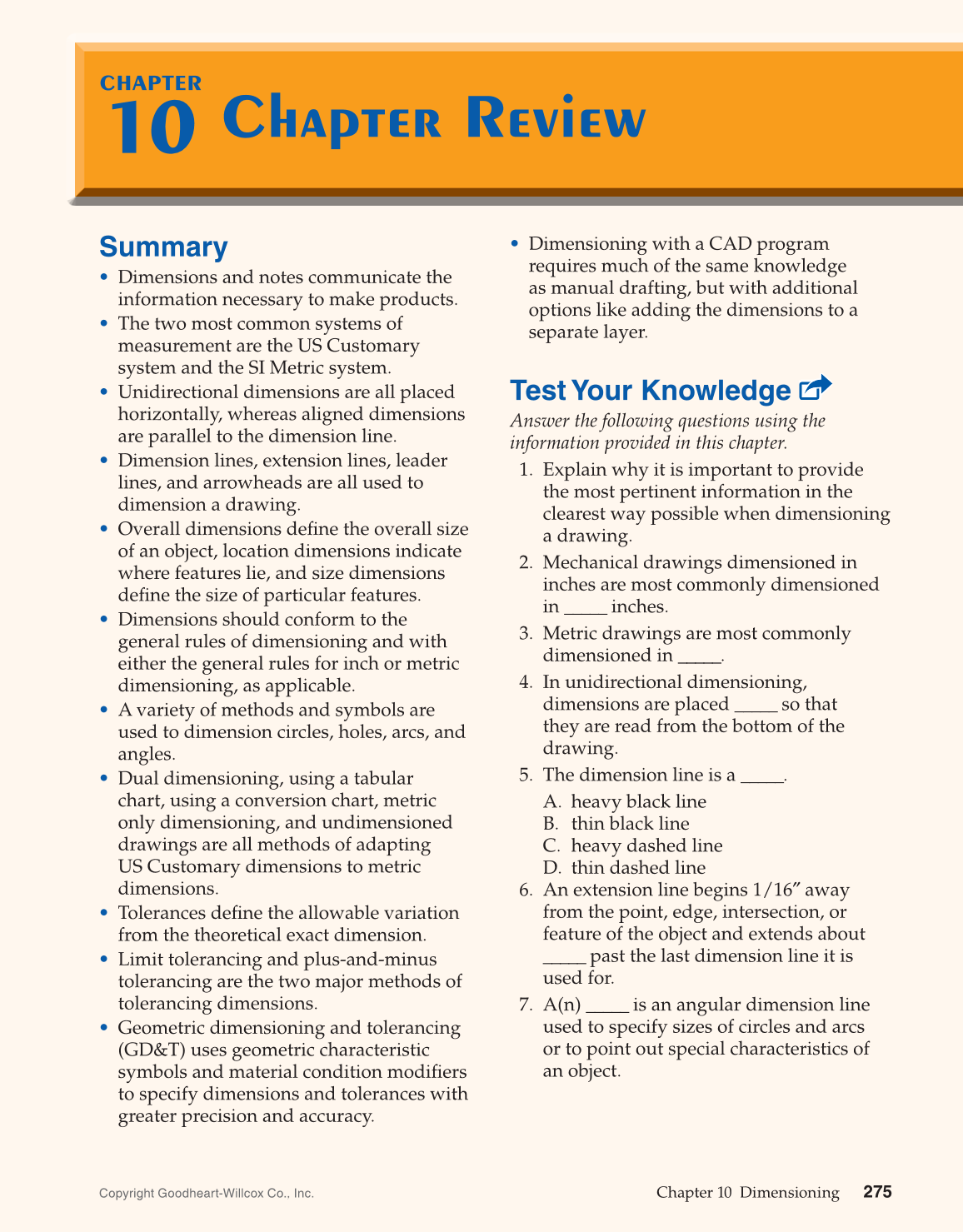

Chapter Review Chapter Review
CHAPTER CHAPTER
10 10
276
Exploring Drafting
8. For most applications, _____ long
arrowheads are satisfactory for
dimensioning.
A. 1/8″
B. 1/4″
C. 1/2″
D. 3/4″
9. The three basic types of dimensions are
overall, _____, and size dimensions.
10. Dimensions are placed on the views that
show the true _____ of the feature being
dimensioned.
11. Which of the following is true of
dimensions?
A. Dimensions should be placed within
the outlines of the views.
B. Overall dimensions should be placed
nearest the view, while the smaller
dimensions should be placed farther
from the view.
C. Dimensions should be placed so that
no scaling of the drawing is necessary.
D. Dimensions should be duplicated
across views.
12. Defi ne chain dimensioning.
13. Give the symbols used to indicate the
diameter of a circle and the radius of
an arc.
14. On your answer sheet, sketch the
following hole symbols.
A. Hole depth
B. Countersunk hole
C. Counterbored or spotfaced hole
15. When associated with the diameter of a
circle, a leader always points to what?
16. When dimensioning the multiview
drawing of a cylinder, the diameter and
length should be dimensioned in which
view?
17. Explain the different types of units used
to express angular dimensions.
18. Defi ne dual dimensioning.
19. What is the tolerance of the dimension
1.45±.05″?
20. Rewrite the limit tolerance 4.23–4.27 as an
equal bilateral tolerance.
21. A(n) _____ is an exact point, axis, plane,
or surface from which features of a part
are located.
22. Briefl y describe some of the factors to
consider when creating a dimension style
for use in a CAD drawing.
Applying Your Knowledge
1. Contact several industrial drafting
departments. If possible, obtain copies of
the standards they use for dimensioning.
Compare how similar or dissimilar they
are. Do they vary by industry?
2. Obtain copies of several industrial
prints. Study how they are dimensioned
and how notes are used. Are there any
provisions for foreign components to be
used with the items on the prints? Will
the parts be exported?
