Unit 9 Architectural Drawings 163

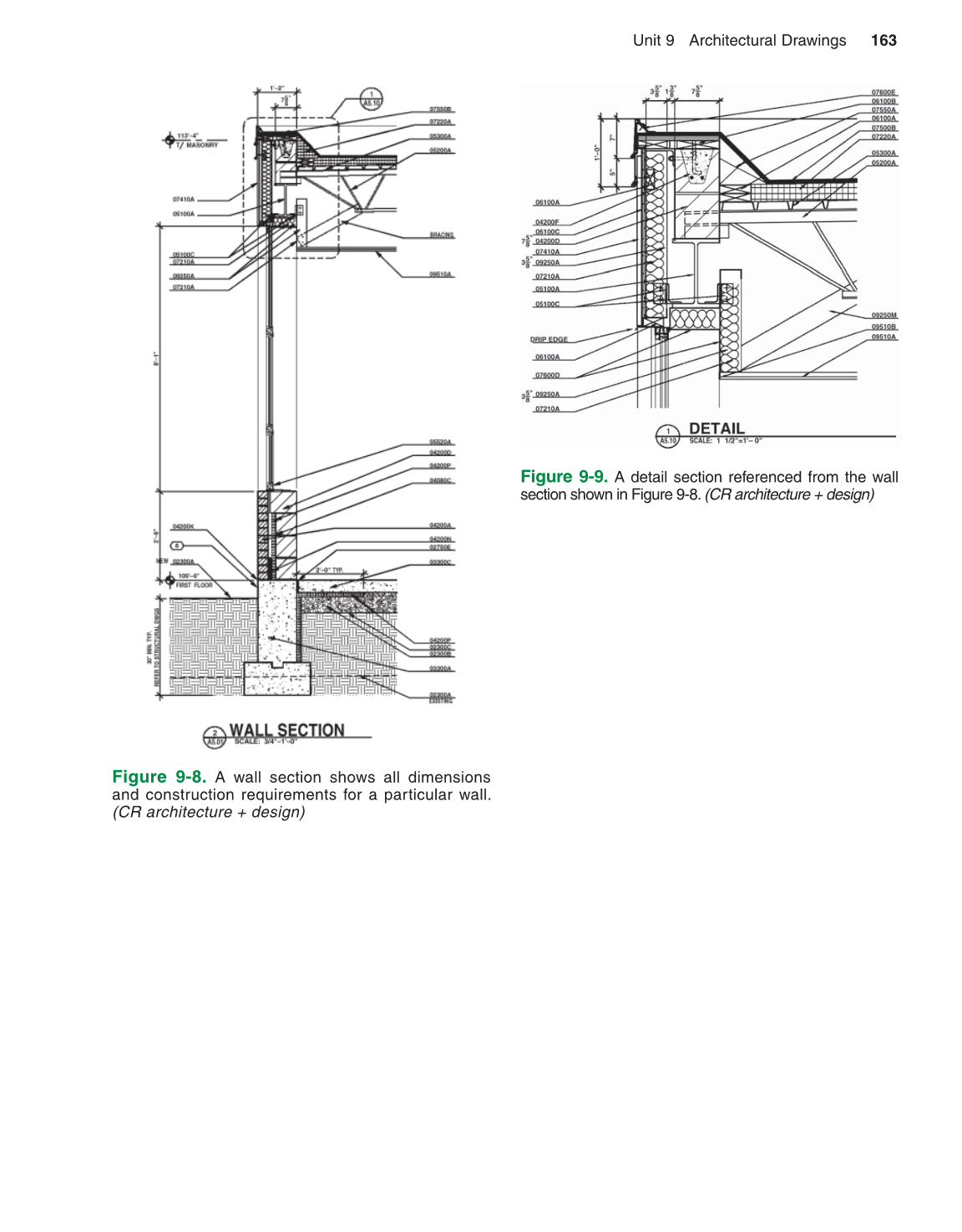

Figure 9-8.
A wall section shows all dimensions
and construction requirements for a particular wall.
(CR architecture + design)
Figure 9-9.
A detail section referenced from the wall
section shown in Figure 9-8. (CR architecture + design)
