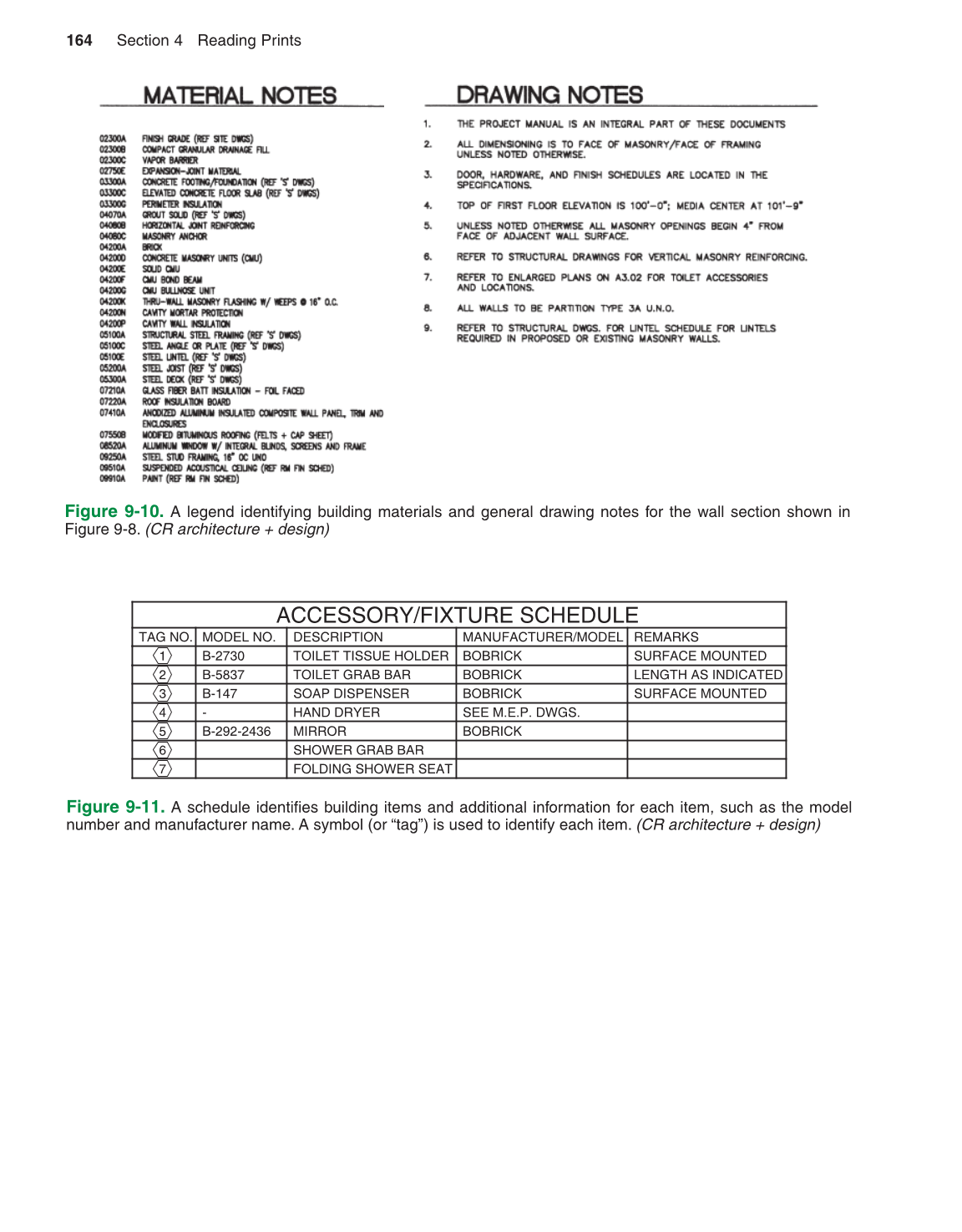

Figure 9-10.
A legend identifying building materials and general drawing notes for the wall section shown in
Figure 9-8. (CR architecture + design)
Figure 9-11.
A schedule identifi es building items and additional information for each item, such as the model
number and manufacturer name. A symbol (or “tag”) is used to identify each item. (CR architecture + design)
MODEL NO. MANUFACTURER/MODEL
ACCESSORY/FIXTURE SCHEDULE
5
B-5837
B-147
-
B-292-2436
TAG NO.
6
7
DESCRIPTION
TOILET GRAB BAR
SOAP DISPENSER
HAND DRYER
MIRROR
SHOWER GRAB BAR
FOLDING SHOWER SEAT
SEE M.E.P. DWGS.
BOBRICK
BOBRICK
BOBRICK
REMARKS
LENGTH AS INDICATED
SURFACE MOUNTED
2
3
4
1 B-2730 TOILET TISSUE HOLDER BOBRICK SURFACE MOUNTED
