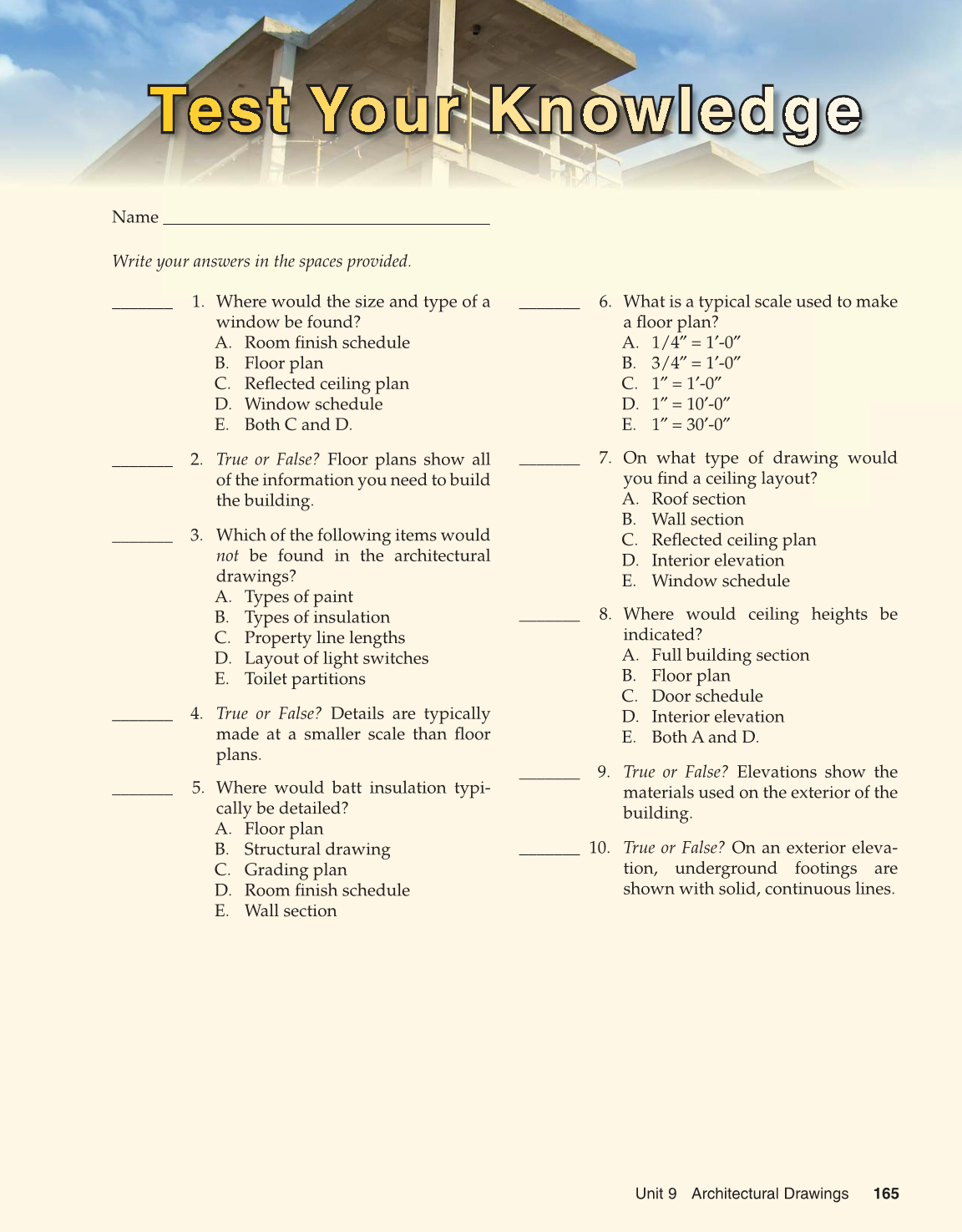

Unit 9 Architectural Drawings 165
Name ________________________________________
Write your answers in the spaces provided.
Test Your Knowledge
_______ 1. Where would the size and type of a
window be found?
A. Room fi nish schedule
B. Floor plan
C. Refl ected ceiling plan
D. Window schedule
E. Both C and D.
_______ 2. True or False? Floor plans show all
of the information you need to build
the building.
_______ 3. Which of the following items would
not be found in the architectural
drawings?
A. Types of paint
B. Types of insulation
C. Property line lengths
D. Layout of light switches
E. Toilet partitions
_______ 4. True or False? Details are typically
made at a smaller scale than fl oor
plans.
_______ 5. Where would batt insulation typi-
cally be detailed?
A. Floor plan
B. Structural drawing
C. Grading plan
D. Room fi nish schedule
E. Wall section
_______ 6. What is a typical scale used to make
a fl oor plan?
A. 1/4″ = 1′-0″
B. 3/4″ = 1′-0″
C. 1″ = 1′-0″
D. 1″ = 10′-0″
E. 1″ = 30′-0″
_______ 7. On what type of drawing would
you fi nd a ceiling layout?
A. Roof section
B. Wall section
C. Refl ected ceiling plan
D. Interior elevation
E. Window schedule
_______ 8. Where would ceiling heights be
indicated?
A. Full building section
B. Floor plan
C. Door schedule
D. Interior elevation
E. Both A and D.
_______ 9. True or False? Elevations show the
materials used on the exterior of the
building.
_______ 10. True or False? On an exterior eleva-
tion, underground footings are
shown with solid, continuous lines.
