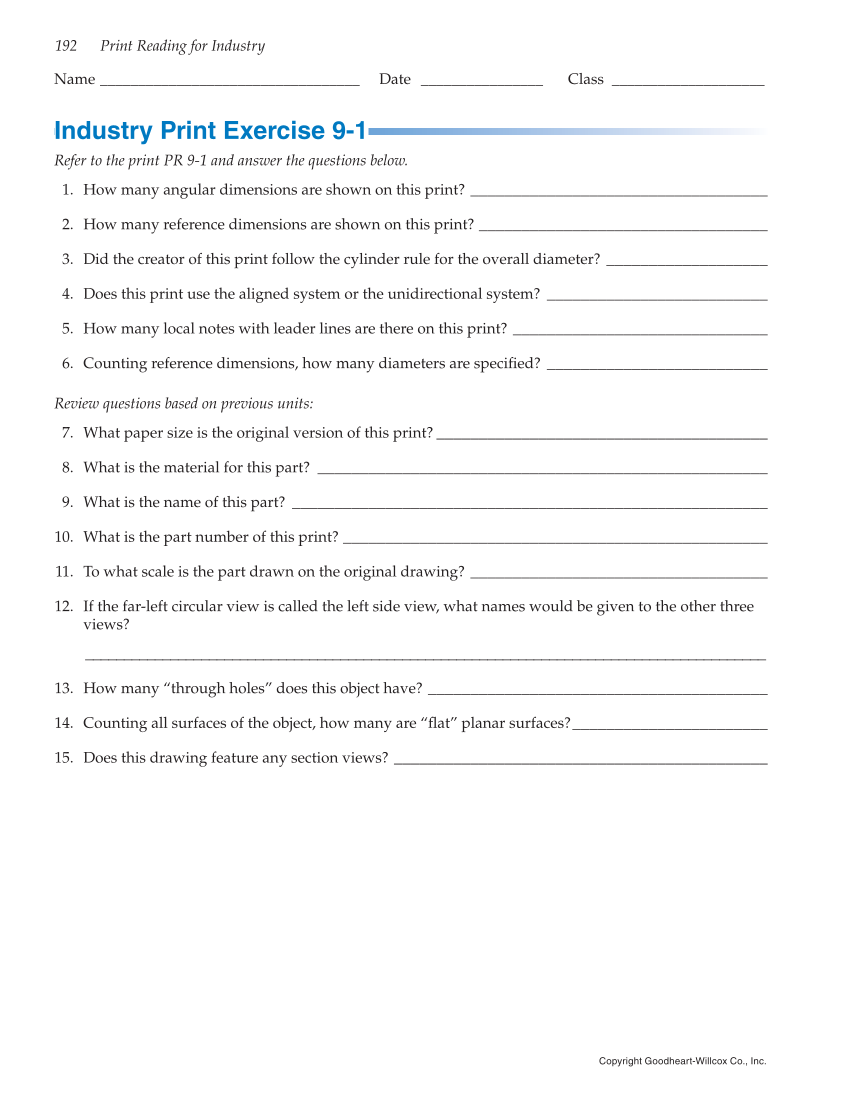

192 Print Reading for Industry Copyright Goodheart-Willcox Co., Inc. Name __________________________________ Date ________________ Class ____________________ Industry Print Exercise 9-1 Refer to the print PR 9-1 and answer the questions below. 1. How many angular dimensions are shown on this print? ___________________________________ 2. How many reference dimensions are shown on this print? __________________________________ 3. Did the creator of this print follow the cylinder rule for the overall diameter? ___________________ 4. Does this print use the aligned system or the unidirectional system? __________________________ 5. How many local notes with leader lines are there on this print? ______________________________ 6. Counting reference dimensions, how many diameters are specified? __________________________ Review questions based on previous units: 7. What paper size is the original version of this print? _______________________________________ 8. What is the material for this part? _____________________________________________________ 9. What is the name of this part? ________________________________________________________ 10. What is the part number of this print? __________________________________________________ 11. To what scale is the part drawn on the original drawing? ___________________________________ 12. If the far-left circular view is called the left side view, what names would be given to the other three views? ________________________________________________________________________________________ 13. How many “through holes” does this object have? ________________________________________ 14. Counting all surfaces of the object, how many are “flat” planar surfaces? _______________________ 15. Does this drawing feature any section views? ____________________________________________
